Lapping Machine/Lapping Polishing Machine

FC-Steel-Lapping Machine/Lapping Polishing Machine

High-precision grinding, specifically designed for multi-material workpieces.

Suitable for a wide range of metal and non-metal workpieces, such as SKD11 steel plates, ceramic components, crystal materials, and mobile phone parts. Precision grinding and mirror polishing are achieved with exceptional flatness and parallelism.

Key Features (Wet Grinding and Polishing Equipment)

• Wet grinder design: Utilizes a recirculating slurry flow system to prevent high-temperature deformation and ensure stable grinding performance.

• Worktable diameter up to 1100mm: Capable of handling workpieces up to 400×600 mm (size may vary depending on the workstations adjustment).

• Four workstations: capable of processing single, double, or four workpieces simultaneously.

Multi-stage motion mode settings:

• Workstations can be set to operate simultaneously, sequentially, or independently.

• Customizable forward and backward dwell time and number of times.

• Adjustable rotation speed of the grinding worktable.

Intelligent Control: HMI Display Interface

• Upgraded 7" human-machine interface (HMI)

• Displays equipment operating status and various parameter settings (e.g., worktable rotation speed, grinding time, workstation parameters)

• Manual individual testing available for each actuator and drive unit.

• Indicator lights show the status of each sensor.

• Features timer settings and timeout alarms to enhance operational efficiency and safety.

• Color TFT touchscreen with selectable built-in languages: Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

Proprietary Technologies:

• Pneumatic cylinders automatically move the workstations to reduce wear.

• Removable grinding pads for easy maintenance and quick replacement.

• Multiple grinding block design to improve grinding uniformity.

• Four displacement mechanisms to prevent localized worktable wear.

✅ This machine is ideal for applications involving wet grinders and automatic grinding and polishing machines, making it the best choice for advanced manufacturing processes.

Grinding Results Display:

• Surface roughness reports can be provided, indicating the type of abrasive used.

• Multi-stage polishing quality can be achieved through different abrasive grit sizes and optional polishing pads.

Typical Application Materials and Workpieces

Applicable Grinding Materials:

Cast iron, aluminum, copper, gold, silver, platinum, high carbon steel, alloy steel, glass, rubber, plastics, marble, granite, silicon, quartz ceramics, nylon, carbon, and more.

Common Grinding Workpieces:

SKD11 pad printing steel plates (heat-treated), tungsten carbide parts, ceramic components, valve plates, oscillators, ferrite cores, sewing machine parts,wafers, watch glass, sapphire, water stop valves, aluminum plates, gaskets, valve discs, oil seals, clutch plates, concentric rings, smartphone panels, compressor/vacuum pump/refrigeration valves, and others.

Three-Stage Precision Grinding Process (Example: SKD11 Pad Printing Steel Plate)

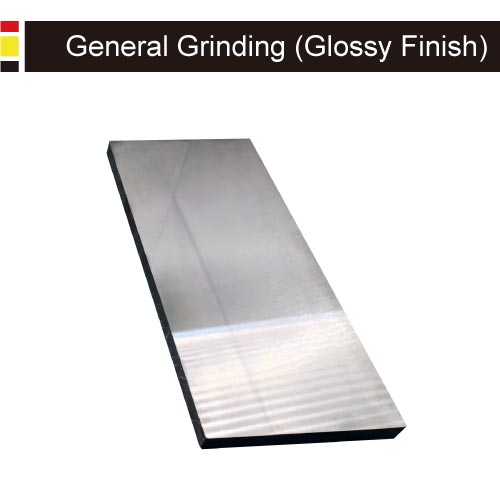

1. Rough Grinding: Performed using a surface grinder with grinding wheels.

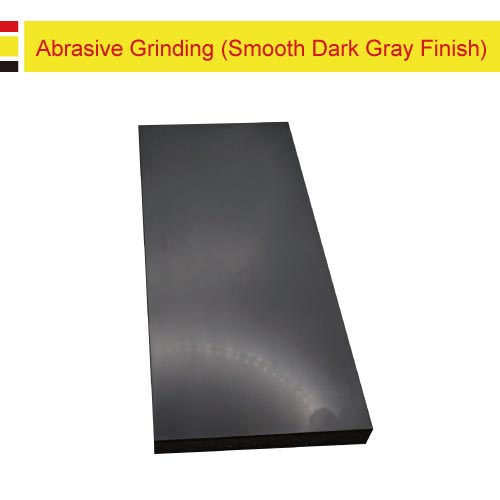

2. Fine Grinding: Conducted with a wet-type surface grinder using abrasive media.

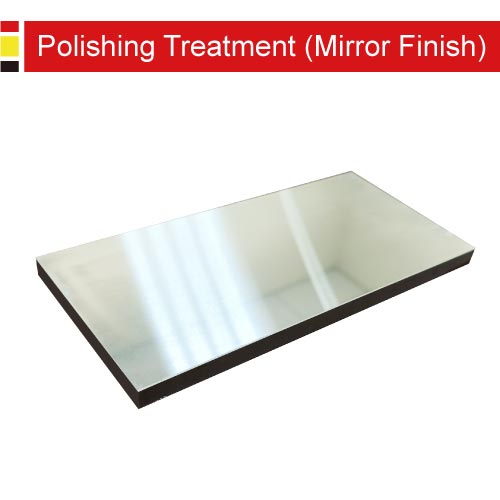

3. Mirror Polishing: Final surface treatment carried out with a wet grinding and polishing machine.

👁️ In most general applications, the process stops at the second stage. However, industries with higher surface requirements—such as contact lens manufacturing—require the third stage of mirror polishing.

Advantages of the FineCause Wet Grinding and Lapping Machine

• Independently developed with multiple patented technologies

• Cooperate with government CITD R&D programs

• Stable, durable, and easy to maintain

• Ideal for pad printing steel plates and precision contract grinding and polishing

Specifications
