Automatic Screen Printing Machines
Index Table Screen Printing Machine (Equipped with Auto-Discharge Mechanism)
- Features
- High-efficiency index table screen printer with Ø500mm rotary platform and 8-station indexer.
Description
FineCause FA-300TSN-HT1 index table screen printing machine features an automated robotic discharge mechanism, high-precision servo drive, optical auto-stop inspection, and WIFI smart factory monitoring for maximum production efficiency.
FA-300TSN-HT1 Index Table Screen Printing Machine (Equipped with Auto-Discharge Mechanism)

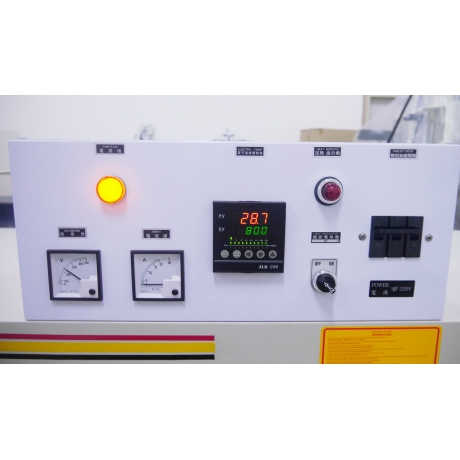

The FA-300TSN-HT1 Index Table Screen Printing Machine features an advanced robotic arm auto-discharge mechanism that seamlessly transfers printed materials onto the conveyor dryer, significantly reducing labor costs and improving production efficiency. Driven by a precise servo motor system, the printing stroke and speed are fully adjustable to fulfill diverse high-precision printing needs. (Note: The infrared conveyor dryer is an optional device).
■ Key Features & Highlights
- Rotary Index Table Design: Equipped with a 500mm diameter rotating platform featuring 8 station indexing discs (size can be customized according to requirements).
- Max. Printing Area: 300 mm × 250 mm.
- High Speed & Accuracy: Printing operates without lifting up the screen, ensuring fast cycle times and highly accurate registration.

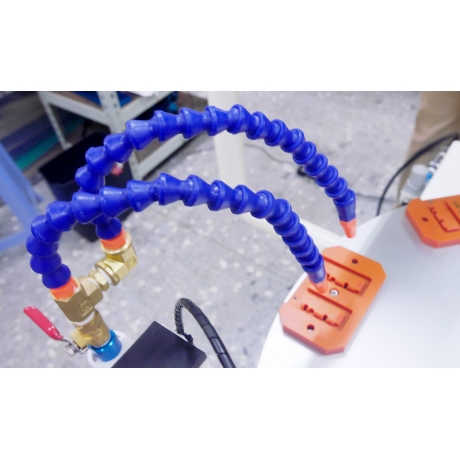

- Smart Auto-Stop Inspection: Features a optical discharge inspection system; automatically stops when no material is detected and resumes via simple stamp control after reloading.

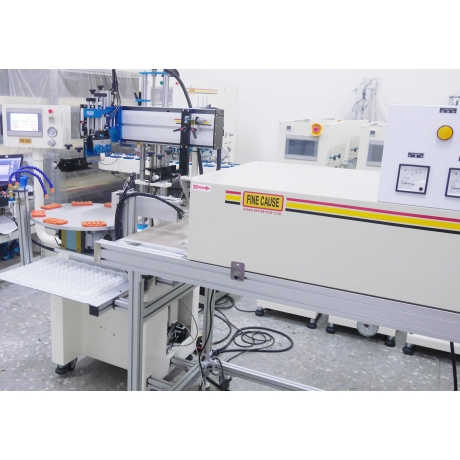

- Automated Robotic Discharge: Integrated robotic arm automatically places finished products onto the conveyor dryer, enabling manpower reduction.
- PLC Control System: Equipped with a user-friendly touch control interface with customizable operation procedures.
- Production Record Tracking: Built-in smart bar chart displays machine productivity, operating time, and production rate over the past 30 days.
- WIFI & FineCause APP Connectivity: Enables real-time remote monitoring of machine productivity anytime, anywhere.

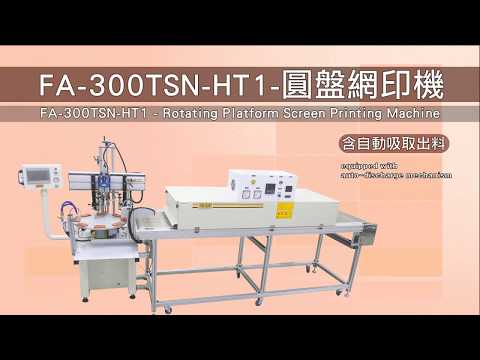

■ FA-300TSN-HT1 Operation Video
Product Specifications
| Model / Spec | FA-300TSN-HT1 |
|---|---|
| Product Name | Index Table Screen Printer (with Auto-Discharge) |
| Max. Printing Area (mm) | 300*250 |
| Rotary Table / Stations | Ø 500 mm / 8 Stations (Customizable) |

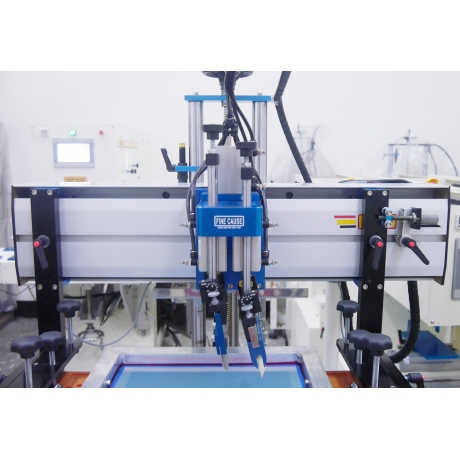

| Drive System | Servo Motor Driven Printing Stroke |
| Control System | 7" Color Touch Screen PLC Interface |
| Inspection System | Optical No-Material Sensor |
| Smart Features | WIFI Connection / FINECAUSE APP Monitoring |
| Air Pressure (kg/cm2) | 4~6 |
■ About FineCause & Global Services
FineCause Enterprise Co., Ltd. is a professional rotating table screen printer, servo screen printing machine, semi-auto silk screen printing machine, and automatic silk screen printing machine manufacturer. All printing equipment is 100% Made in Taiwan, sturdy, durable, and built for high performance.
Great after-sales service support is one of the key reasons customers choose FineCause. Whether you are located in Malaysia, India, Vietnam, the Philippines, Thailand, the United States, Germany, France, the United Kingdom, Brazil, Italy, Canada, Russia, Spain, Australia, Mexico, Turkey, Indonesia, Japan, South Korea, or beyond, Fine Cause always provides the best technical support and aim to make FC products trusted worldwide.
