Single Color Pad Printer

Large image pad printer

FC-211DNC

Features: Large-sized printing cylinder for full-coverage printing.; The Large image pad printer uses exclusive Ink-Scraping System w/Adjustable Pressure

Description

This large image pad printing machine Using 130mm Ink Cup. Suitable for Big Size Printing or Whole Side Cover Printing. own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.

Add Inquiry (0)

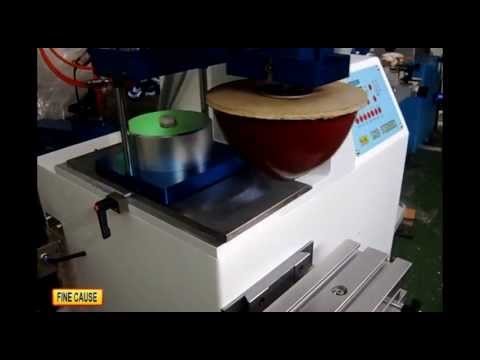

Pad printer by one-color ink cup /pad printing machine-FC-211DNC

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Feature :

Pad printing machine Using 130mm Ink Cup. Suitable for Big Size Printing or Whole Side Cover Printing
Large Pad for Whole Side Cover Printing
L-Shape Casting Structure, Strong and Easy to Operate
The pad printer uses exclusive Ink-Scraping System w/Adjustable Pressure
Mirco-Computer Auto Debugging. Convenient and Easy Maintenance
The pad printer is fully upgraded with a 7-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.

■ Suitable For :

Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metalfinished and semi-finished products, Ceramic Glass products, uneven surface printing.

Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.

FC-211DNC [New Stock] Clearance Special Price

Original selling price: NT228,000

Special price: NT182000

Specifications

Model	FC-211DNC
Color	1
Cycles/hr	600~800 Pcs
Machine Size (cm)	L:80 W:70 H:150
Weight	125KG
Pressure (kg/cm2 psi)	4~6
Power (A) Ampere	10
Voltage (V)	110-220V
Max. Printing Area (mm)	Ø110
Max. Height of Printed Object (mm)	180mm
Height - Pad Stand to Steel Plate (mm)	100
Max. Steel Plate Size (mm)	L:370 W:170 H:10
