Pad Printing Machine with CCD + Running Cliché + Pad Cleaning

Pad Printing Machine with CCD + Running Cliché + Pad Cleaning

High-Precision CCD Pad Printing Machine | CCD Alignment Pad Printer

Designed for lens and precision component applications — featuring running cliché and pad cleaning system



Core Features & Patented Technologies

1. High-Precision CCD Alignment & Quality Monitoring

• Built-in 8-megapixel CCD camera for real-time print quality monitoring

• Dual crosshair alignment lines allow manual alignment of invisible marks directly on-screen

• Image control functions: on/off, pause, capture settings (manual, automatic, interval, delay, etc.)

• Supports automatic image storage after printing with USB data export

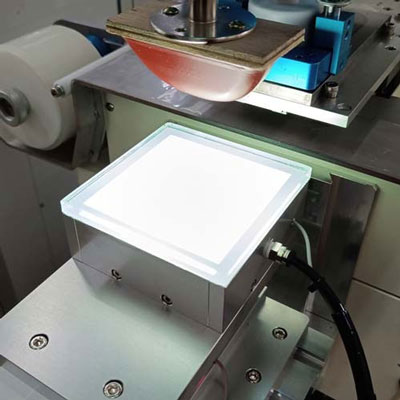

2. Stable Alignment Platform & Multi-Height Adaptability

• Vacuum fixture alignment platform ensures stable positioning with zero movement after alignment

  • Custom vacuum fixtures with glass and illumination enable easy inspection of target marks

• Dual-mode sensing system (proximity + pneumatic): supports printing on lenses of varying heights without frequent adjustment

  • Downward pressure sensing device can sense the downward pressure to maintain printing depth — no manual adjustment required for products of different heights

3. Multiple Patented Technologies

• Adjustable ink cup pressure system (Patent No. M311585): enables quick micro-adjustments of doctoring pressure

• One-piece machine body (Patent No. M453283): computer-formed sheet metal with powder coating for superior structural stability

• Algorithm-based pneumatic brake (Exclusive Patent): automatically calculates braking distance for silent, wear-free operation

• Anti-drop pad protection: after printing, even if the air pressure leaks, the printing pad will not drop and cause damage

4. Automatic Cleaning & Production Continuity

• Equipped with an automatic pad cleaning system, ensuring long-term stable print quality

Intelligent Control System

Intuitive User Interface

• 10" color touch screen: clearly displays input/output status and sensor positions at a glance

• Real-time abnormality alert system: scrolling alert messages show errors for low air pressure or abnormal conditions.

Production Management Functions

• Consumable lifespan management: allows presetting pad and cliché usage counts for automatic stop and alert when limits are reached

• Production history and data analysis: built-in smart bar chart displays the last 30 days of production volume, operating time, and printing speed

Multilingual Support & Programmable Expansion

• Supports Traditional Chinese, English, Indonesian, Vietnamese, and Thai

• PLC control for easy function upgrades and system expansion

• Multiple formula storage for quick switching between product settings

Product Applications

• Printing on optical lenses and contact lenses

• Precision electronic parts and sensor marking

• High-accuracy logo or symbol printing

Why Choose FC-161ENC-CCD-WU?

The CCD Pad Printing Machine not only meets high-precision alignment demands but also integrates image monitoring, data tracking, and automation functions, significantly reducing manual inspection workload while improving production quality. For optical and precision manufacturing industries seeking high yield rates and stable production, this model is a reliable, patent-backed solution designed for professional-grade performance.
