Desktop Electric Pad Printer (Cam-Driven Type) / Running Cliché Pad Printer

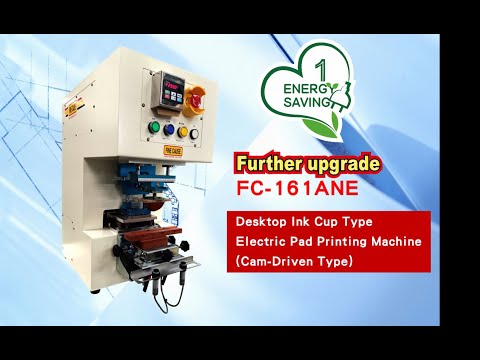

FC-161ANE-Gen 3–Desktop Electric Pad Printer (Cam-Driven Type)

Desktop Electric Pad Printer/ElectricPad Printing Machine



Desktop Ink Cup Type Electric Pad Printing Machine





The running cliché design reduces movement and vibration of the ink cup, helping to maintain ink consistency.

Plug and play, no air connection or compressor required—highly power-saving! With digital operation, energy-saving design, and easy-to-use modes, this machine is an affordable yet high-performance option on the market.

Newly upgraded, more versatile and flexible in adjustments!

Building upon the stable and efficient features of the previous generation, the 3rd generation FC-161ANE pad printer brings comprehensive upgrades in adjustment mechanisms and operational convenience, greatly enhancing printing quality and flexibility.

🆕 【New Feature Upgrades】

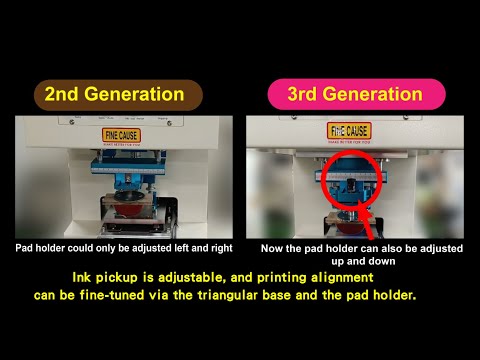

Pad holder adjustable in four directions (up/down/left/right):

The pad holder now adds up/down adjustment in addition to the original left/right adjustment. This allows fine-tuning based on artwork position, improving printing accuracy.

More flexible ink pickup adjustment design:

The dwell time after ink pickup can be freely set. Combined with adjustable triangular base and pad holder, it enables more even ink transfer and improves efficiency when handling inks with different drying speeds.

✅ Core Features

Cam-driven transmission system:

Precise motion and high stability, reducing vibration during operation and improving print quality.

Digital control panel:

Speed is adjusted via rotary knob. Simple and intuitive interface with flexible speed settings.

All-electric pad printer:

Plug and play. No air connection or compressor needed—very power-efficient!

Running cliché design:

The steel plate moves, while the pad and workpiece remain stationary. This effectively avoids misalignment and improves printing stability.

Servo motor-driven pad movement (forward/backward):

High-precision control for smoother motion.

Fully electric design, no air compressor needed:

Plug and play. Energy-saving and environmentally friendly, reducing power usage by about 80%.

Photoelectric safety sensor:

Stops the machine immediately when approached, with a flashing indicator light. Dwell time can be adjusted.

Adjustable ink pickup dwell time:

Modify dwell seconds based on ink type (slow-drying or fast-drying).

Programmable number of print cycles:

Supports one or two prints per cycle, increasing ink thickness and opacity.

🛠 Operation & Structure

Multiple operation modes: Auto, Semi-Auto, Ink Cup Motor, Jog

Compatible ink cup and cliché plate sizes:

Ink Cup: Ø60mm

Steel Plate: L200 × W90 or W100 × H10 (mm)

Machine body: Made with CNC sheet metal and powder coating, integrated, sturdy, and durable

Compact desktop design: Ideal for SMEs and personal studios

Made in Taiwan – Stable and reliable quality

Specifications
