1-Color Pad Printing Machine
Custom semi automatic pad printer
- Features
- The pad printing machine adopts an L-shaped casting mechanism and is integrally molded, making it sturdy and easy to operate.
Description

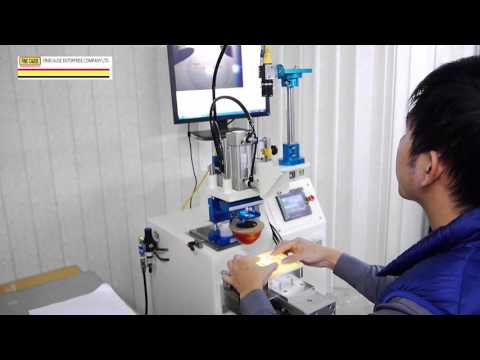

Customized semi-pad printing machine, equipped with a 2.3-megapixel imported color cam (including crosshair ruler software) for positioning. Suitable for: printing on special or fragile items, printing on uneven surfaces such as ceramics and glass. Employs industrial cam-assisted positioning. The machine can be connected for automation.
Custom semi automatic pad printer-FC-161DNC-STV
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-
2.3MP Imported Colored Cam (crosshair scale software included) for positioning
-
Pneumatic Sensor of Pad Down-Stroke – Automatic pad up when reaching the value and to prevent the breakage of the substrate.
-
Vacuum Fixed Substrate – Front/Back Moving Mechanism for precision position
-
Steel plate size: 90*200mm
-
Ink cup sizes：φ60mm
-
Effective printing area：φ50mm
-
65536 Color TFT Touch Panel
-
PLC Control, Easy to Add Functions
-
L Shape Casting Structure – One Piece Body – Strong and Easy to Operate
-
Exclusive Patented Adjustable Ink-Scrape Mechanism (Patent No. M311585)
■ Suitable for :
Special or fragile product printing, uneven surface printing like ceramic glass. Industrial cam to assist positioning. Machine can be connected to make the automation.
Specifications
| Model | FC-161DNC-STV |
|---|---|
| Color | 1 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:80 W:100 H:150 |
| Weight | 100 Kg |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 5 |
| Voltage (V) | 110V & 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height - Pad Stand to Steel Plate(mm) |
100 |
| Max. Steel Plate Size(mm) |
90*200*10 |
