Curved Surface Screen Printing Machine(Color Senso+Servo Rotary+Custom Fixtures)

FA-400RSM-CY Curved Surface Screen Printing Machine

(Color Sensor Registration + Servo Rotary Drive + Custom Fixtures)



Key Features

🌀 Dual-Mode Curved Surface Screen Printing Design

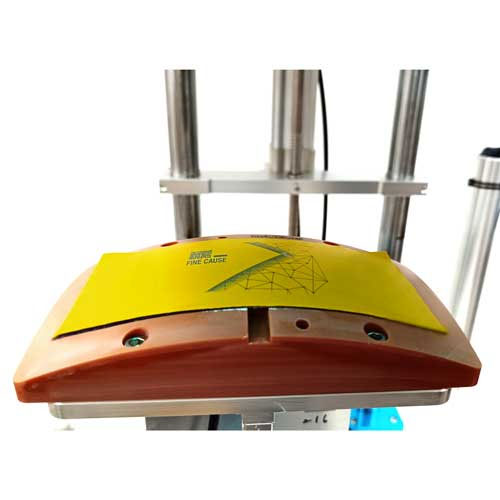

• Custom Fixtures: Tailor-made fixtures can be created for uniquely shaped products. All settings can be saved directly into the HMI for fast reuse

• Interchangeable Servo Rotary Module: Supports 360° rotary printing for cylindrical products. Rotation angle and speed are digitally controlled via servo motor.

• Two-in-One Machine: Easily switches between curved surface and cylindrical printing modes for production flexibility.

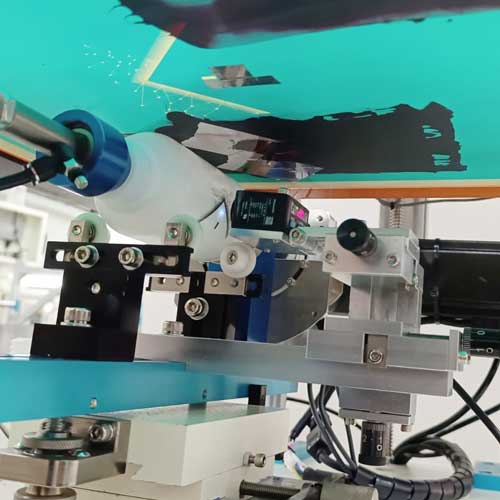

Color Sensor Registration System

• Integrated color sensor detects previously printed color layers to digitally define the print start point

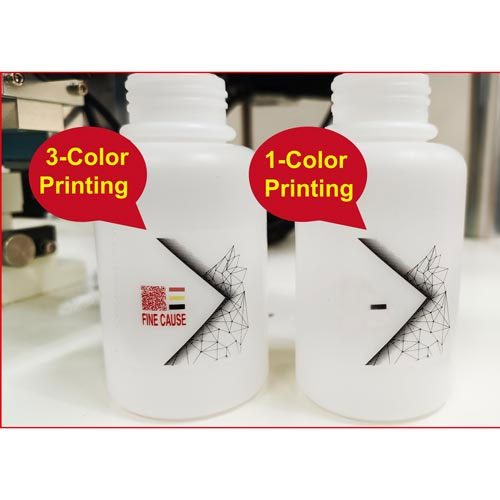

• Delivers stable and precise multi-color registration, even for second or third layers.

• Whether printing one or multiple colors, the system ensures consistent and accurate alignment every time.

Servo Rotary Motor Module

• Replaces traditional gear and rack mechanisms with a fully digitally controlled servo system.

• Enables smooth, jitter-free motion, improving print stability and quality.

• Integrated with a lightweight, low-noise, and fast-responding extrusion-molded servo slide base.

Pneumatic Squeegee Holder (Vertical Movement)

• Eliminates misalignment issues caused by manual  lifting.

• Reduces ink spillage and squeegee misalignment issues. Enables faster cleaning and more consistent placement.

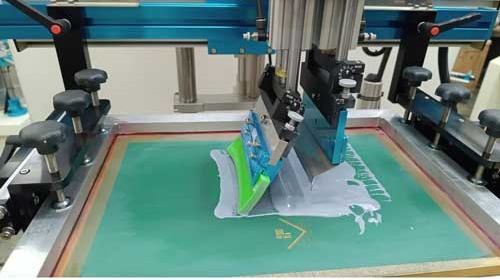

Patented Magnetic Squeegee Clamp (Patent No. M390871)

• Magnetic clamping design allows for quick and secure installation. Squeegee position can be easily adjusted by sliding.

• Precision linear guides offer stable and accurate support for consistent ink application.

• The printing system features servo motor control, linear guides, and ball screw drive, with digitally defined squeegee stroke positions and support for seamless 360° printing.

Smart HMI Control System

• 7-inch Color TFT Touchscreen

• Multilingual interface: Traditional Chinese, English, Indonesian, Vietnamese, Thai

• Sensor mapping and real-time position feedback for intuitive operation

• PLC-based controller for easy expansion and customization

• Scrolling text alerts for quick error identification

• Electronic pressure monitoring with automatic fault detection display

Intelligent Printing Management

• Track and manage squeegee/screen usage with auto-stop and maintenance reminders

• Save multiple printing parameter sets for fast reciepe switching

• Production History Analysis:  with bar chart display for the past 30 days of

  • Productiviy

  • Runtime

  • Production speed

WiFi Connectivity (Optional)

• Optional WiFi module allows connection to the Fine Cause App, enabling real-time monitoring of production status— anytime, anywhere.
