bottle screen printing machine/bottle printing machine

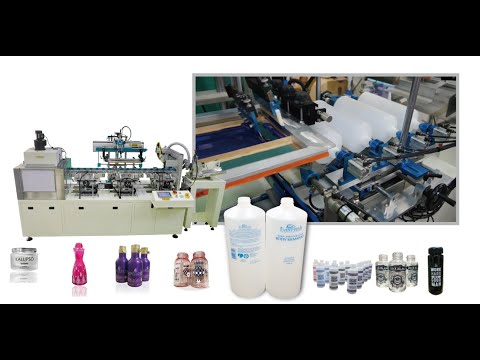

FA-LV3 bottle screen printing machine/bottle printing machine

curved screen printer (flame + UV curing)




■ Feature:

• Bottle screen printing machine's feeding ramp mechanism

  • Can be increase to 6 colors as required by client.

  • Can be equipped with fully automatic feeding mechanism

• Production speed: 900~2400 pcs/h, depending on the actual printing area

• The applicable round bottle has a diameter of 40~80mm

• and a length of 40~130mm.

  • Can be planned and designed according to the bottle size.

• Automatic Bottle Screen Printing Machine's Suction feeding mechanism

  • Equipped with a feed sensor, it can suck the feed accurately and quickly, improve stability, and prevent falling and jamming

• Flame treatment

  • Using PLC control core, the number of seconds of flame treatment can be set,Can achieve the most ideal surface treatment effect.

• Servo curved screen printing mechanism

  • The squeegee seat  uses the tooth rod to move left and right to accurately adjust the position of the lower knife and the center point of the printed matter

  • Magnetic Squeegees Clip (Patent No. M390871) easy to positioning, load and unload.

  • You can set the number of times the screen version is used, and it will automatically stop and marquee inform when it arrives

  • Pneumatic Squeegee seat Stand – Up and Down.

  • Suitable for flat, inclined, arrow-shaped squeegee, The tilt angle can be adjusted arbitrarily during printing to adapt to bottles with insufficient roundness.

  • Servo mobile transport mechanism

  • Servo transfer mechanism can control speed and reduce inertia

• This  bottle screen printer adpots 7.0 inches multicolor color touch screen with 65536 colors TFT;The man-machine interface can be easily switched to select the language:English, Indonesian and Traditional Chinese.

• Abnormal, insufficient air pressure automatic alarm, a marquee display will be provided

• This  automatic screen printing machine is equipped with UV drying mechanism-UV curing equipment to optimize drying speed.

  • High-frequency output of ordinary ultraviolet light, drying faster and saving time.

• Built-in smart bar charts which displays productivity, operating time, production speed, etc.

  • No matter where you are, as long as you download the Finecause APP, you can view the production capacity report and assist you

• in implementing your production management goals

• automatic discharging
