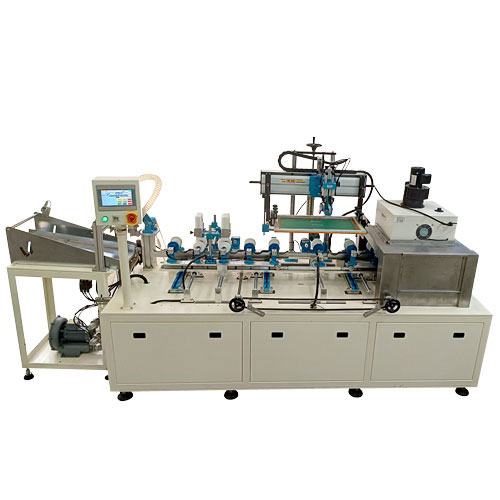

Bottle printing machine by cam type

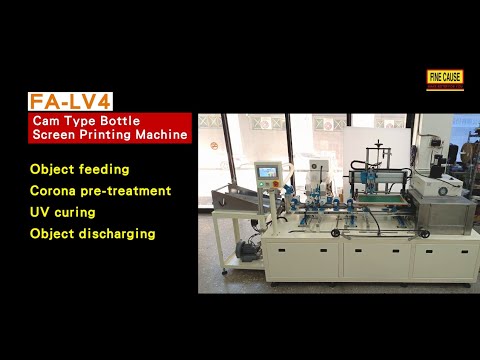

FA-LV4-Bottle printing machine by cam type

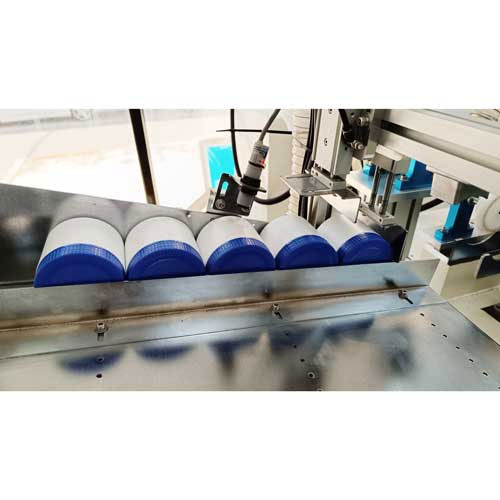

Object feeding mechanism:

• The automatic bottle printing machine is equipped with a ramp mechanism for objects feeding. The mechanism and program are modular. 1 to 6 colors can be connected in series. A fully automatic feeding system can be combined as well.

• The automatic bottle printing machine is equipped with a ramp mechanism and a suction arm, coupled with a feeding sensor for objects feeding. It precisely and rapidly grabs objects, enhancing stability and preventing dropping or object jams.

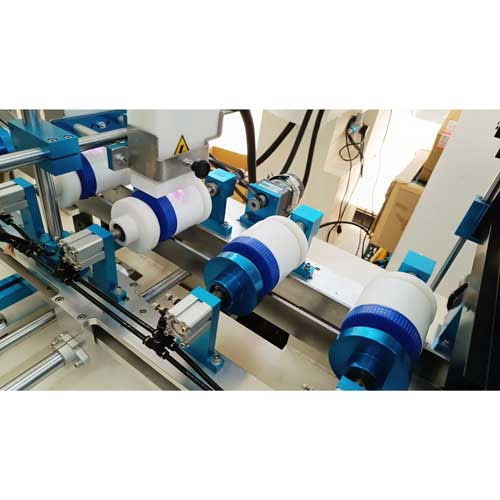

Corona pre-treatment:

• This bottle printing machine is equipped with a corona treater for automatic pre-treatment; a flame treatment machine can be applied for pre-treatment as well.

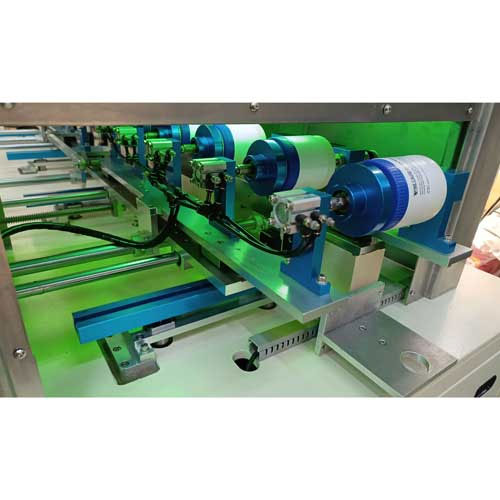

Cam disk mechanism:

• 【Cam disk】 mechanism is used; the cam operation is driven by servo motor continuously. The operation runs 【stably and fastly】, increasing production speed.

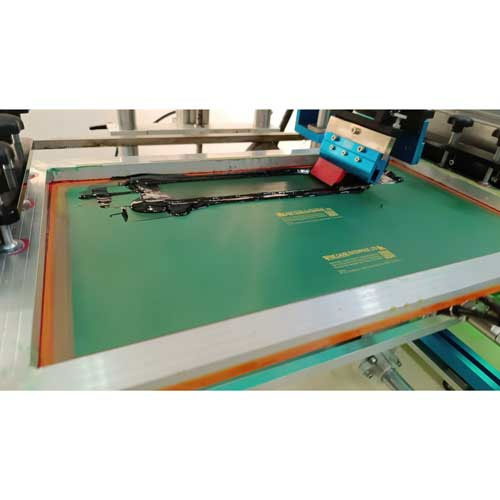

400-stroke screen printing machine:

• Pneumatic squeegee assembly up and down linearly.

  • Equipped with magnetic squeegee clip - Patent No. M390871, allowing convenient disassembly, assembly, and adjustment of the squeegee. Suitable for plain, S cut, D cut squeegee; the tilting angle can be adjusted freely during printing to adapt to containers with insufficient roundness.

UV curing mechanism:

• After printing, rapid curing are achieved through UV light exposure.

Smart HMI

• The bottle printing machine is equipped with a 7.0" color TFT touchscreen and PLC. It features automatic alarms for abnormalities and insufficient air pressure with a marquee display.

  • The usage times of screen stencil can be set; when the set value is reached, the machine will automatically stop and alarm.

  • Built-in 5 languages, including Traditional Chinese, English, Thai, Vietnamese, and Indonesian. Switching between them is just one click away.

  • Built-in smart bar chart that the productivity, operation time, production speed, and more in the past 30 days can be shown.

• With WiFi functionality, download the FineCause app, and you can view production reports from anywhere, assisting you in achieving production management goals.

• Actual printing production speed: 1,850 pcs/h. The printing area does not affect the production speed of this machine.

• The bottle printing machine is suitable for round bottles with a diameter of 40 to 80mm and a length of 55 to 300mm. The machine can be designed according to the size of the bottles.

• Automatic discharge - Automatically discharges after curing. It can also be paired with discharge methods such as a conveyor belt.

Specifications
