3-Color Contact Lens Pad Printer with Rotating Table







■ Contact Lens pad printing machine features：

• 16 Rotary Indexing Table for Contact Lens Pad Printing Machine

• The pad printing machine adopts 16-segment precision rotary indexing table (1~2 stages larger disc surface size) and rotary vacuum shunt circuit.

• Z-axis stroke adjustment device

  • 2 sets of Z-axis stroke adjustment device for each pad printing package (Sensor tracking during adjustment); adopts precise screw rod for accurately minute adjustment of printing posistion

• Redesigned and reinforced cliché plate bracket that makes the bracket sturdier and helps more precise pad pressing

• Provides low negative pressure and all negative pressure vacuum suction force; easy for feeding; all negative pressure suction after positioning

• The printer increases the pressure storage tank to provide a stable vacuum pressure value

• Contact lens manufacturers named favorite contact lens pad printing machine; Accurate~Rapid~Stable; Best choice for optimal printing quality

• Automatic rotary positioning device

  • Automatic rotary positioning to reduce inertial force and reach more accurate printing position

• Electrostatic air blowing + suction dust removal device

  • Electrostatic air blowing + suction dust removal device  to ensure cleaniness of every lens

• 10 inches multicolor touch screen and programmable logic controller

  • 10 inches TFT multicolor touch screen with 65536 colors; built-in Traditional Chinese, English, and Indonesian

  • Programmable logic controller - easy for function settings and simple operation

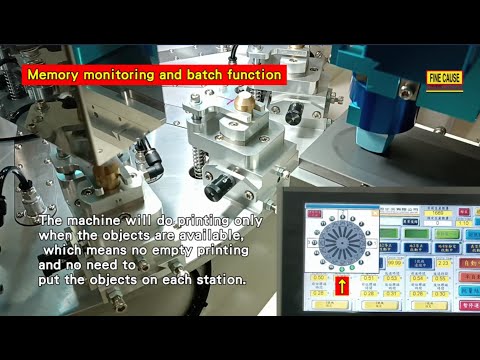

• Built-in smart bar charts which displays productivity, operating time, production speed, etc.

• The new model of smart factory Industrial Internet of Things (I.0.T.)

  • No matter where you are, as long as you download the Finecause APP, you can view the production capacity report and assist you in implementing your production management goals
