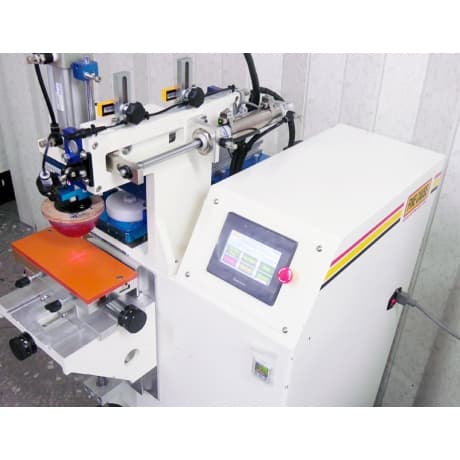

1-Color Pad Printing Machine

semi automatic tagless pad printer

FC-191DNC LT

Features: The enlarged body of the pad printing machine ensures greater stability during high-speed operation.; The ink cup doctor blade pressure of the pad printing machine is adjustable.

Description

Enlarged Machine Body. More Steady when Fast Running. This tagless Printing equipment has own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the.

Add Inquiry (0)

Semi automatic tagless pad printer -FC-191DNC LT

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Feature :

Create new machine which design for Price cost down, it’s a good option for machine utilization is low
If machine install industrial camera, it is easy way for that additional install monitor on the left side of iron work table

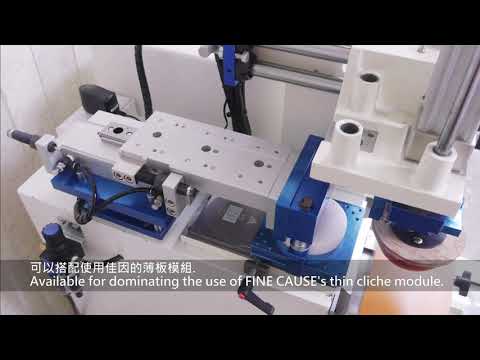

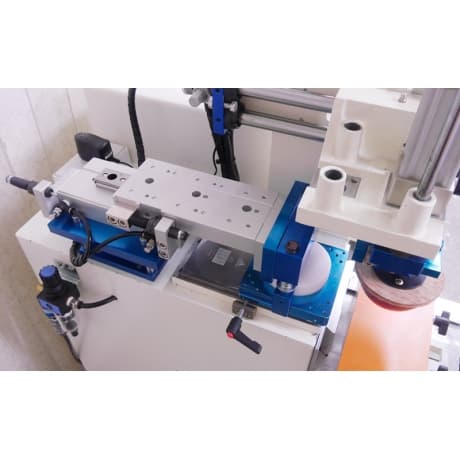

It can be go with Finecause Slim Module
Built-in intelligent software which show column chart of past 30 days on the monitor

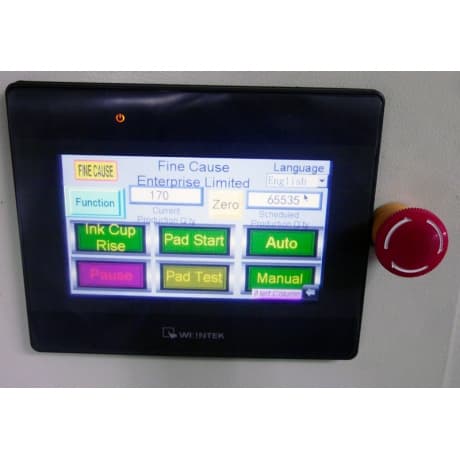

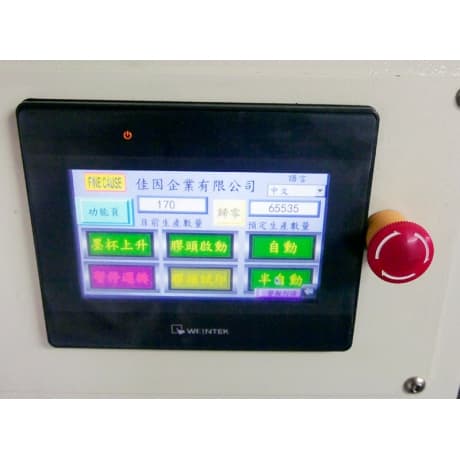

Color touch panel, embedded three different languages- Chinese (traditional), English, Indonesian
Micro Computer Controlled Panel. Easy to Operate. Maifunction Auto Display System
Enlarged Machine Body. More Steady when Fast Running
Renovation Model
Adjustable Ink Cup Scraping pressure
L-Shape Casting Structure. Strong and Easy to Operate
Application for tagless labels

■ Suitable For :

Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metal finished and semi-finished products, Ceramic Glass products, uneven surface printing.
Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.

Specifications

Machine Type	FC-191DNC LT
Color	1
Plate size(mm)	L:200 W:90 H:10
Cycles/hr	1200~1800 Pcs
Machine Size (cm)	L:70 W:50 H:120
Weight	90KG
Pressure(kg/cm2 psi)	4~6(kg/cm2 psi)
Power (A)Ampere	3A
Voltage (V)	110V & 220V
Platform Size (mm)	80*220
Max. Printing Area(mm)	Ø75
Max. Height of Printed Object(mm)	180
Platform Moving Distance(mm)	125 (Front/Back)
Height -Pad Stand to Steel Plate(mm)	94
Max. Steel Plate Size(mm)	90*200
