Squeegee Sharpener for Screen Printing

B001FASG600-Squeegee Sharpener for Screen Printing



【Fast! Economic! Convenient! Save your squeegees from getting dull, and save your money】

■ Squeegee Sharpener Features and performance:

• The Squeegee Sharpener has 6-segment running parameter settings

• Flexible settings for bilateral run count, speed, area and timer

• Maximum grinding angle up to 45 degrees

• Adjustable position

• Adjustable grinding run count and moving speed

• The bilateral positioning address can be built in tutorial parameter_quick setting

• Also quick for fixing S-cut (chisel shaped) / D-cut (V-shaped) squeegees

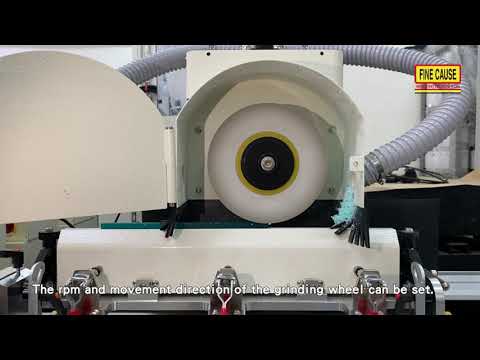

• The rpm and movement direction of the grinding wheel can be set

• Grinding system driven by a servo motor - more steady rpm than one driven by a normal motor

• Available for squeegee profile: plane, D-cut (V-shaped), S-cut (chisel shaped)

• This machine has vacuum function that can clean the residues and reduce dust emission during its operation

• A multicolor TFT touch screen with 65536 colors and built in Traditional Chinese, English, Indonesian and Thai languages.

• Maximum length of squeegee bracket: 500mm

Specifications
