Screen Printing Accessories
Squeegee Mechanism-2 Axis Stepper Motor
- Features
- Time-saving, accurate, and fast adjustment of the ink return knife and squeegee position.
Description
The height of ink return knife and squeegee are adjusted by manual normally. A multiple times careful alignment is needed for manual adjustment, which takes time. A 2 axis stepper motor installed in squeegee mechanism can do adjustment accurately and quickly.
FA300-600-Squeegee Mechanism - 2 Axis Stepper Motor
The standard machine can be equipped with a squeegee mechanism-2 axis stepper motor to improve work efficiency.

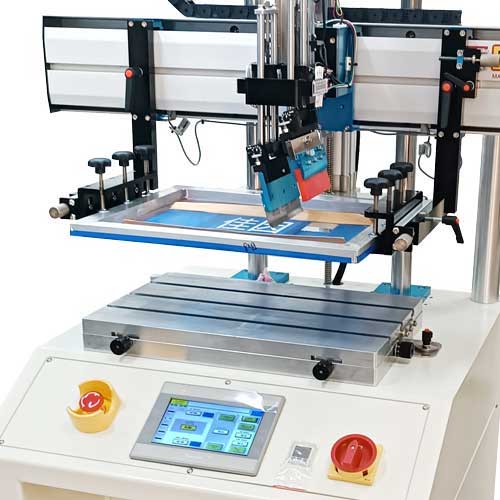

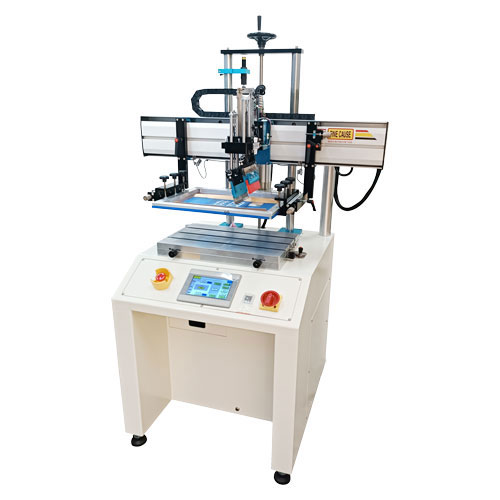

FA-600TSN-BHB-Squeegee Mechanism Screen Printer with 2 Axis Stepper Motor
The height of ink return knife and squeegee are adjusted by manual normally. A multiple times careful alignment is needed for manual adjustment, which takes time. A 2 axis stepper motor installed in squeegee mechanism can do adjustment accurately and quickly.
-

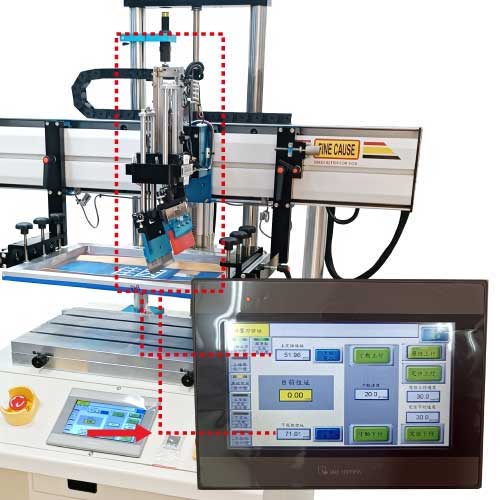

Stepper motor is controlled by touch screen.
-
7" color touch screen, one key to switch between 5 languages.
-
Digitization reduces personnel operation errors.
-
-

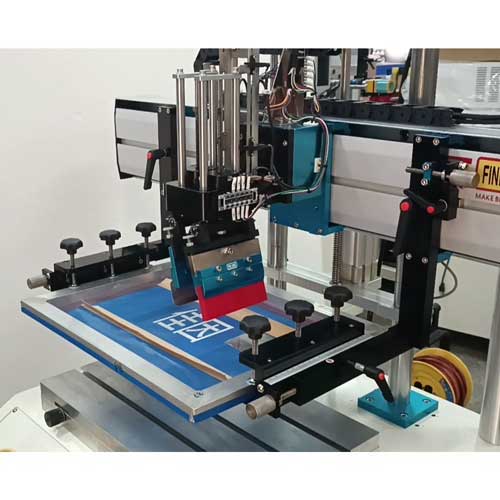

The stepping motor is used to drive the squeegee stand set to go up and down linearly. The height of the squeegee will not deviate. The cleaning of screen stencil is more convenient.
-

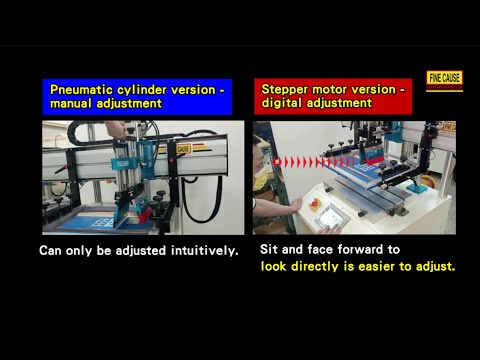

Differences between pneumatic cylinder version and stepper motor version:
-
Pneumatic cylinder version - manual adjustment, there is no data for the height of ink return and ink scraping, and can only be adjusted intuitively.
-
Stepper motor version - digital adjustment, with data, and the height can be fine tune in units of 0.01mm, which is very precise.
-
-
Sit and face forward to look directly is easier to adjust.
-
The standard machine can be installed as an option to improve work efficiency.
