Screen Printer Upgraded | FA-TSN Flatbed Screen Printing Machine Series (Safety Light Curtain)

A Dual Leap in Craftsmanship & Safety! The All-New FINE CAUSE FA-TSN Series Intelligent Precision Screen Printing Machine↗

In modern industrial production where peak efficiency and precision are paramount, standard flatbed screen printers must move beyond traditional mechanical constraints. FINE CAUSE, a professional brand in industrial printing, has channeled years of R&D expertise into completely evolving its flagship flatbed screen printing machines to introduce the all-new generation FA-TSN Series Intelligent Screen Printer. From digitized parameter adjustments and maintenance-free mechanical architectures to high-standard safety protections, the FA-TSN Series delivers a revolutionary upgrade for your printing line.

Dual safety upgrades: Aligning with Strict European and American Operational Safety Standards

• All-New Enclosed Upper Safety Housing (Passive Protection): In response to the rigorous operational safety standards set by advanced industrial nations in Europe and America, the upper assembly of this series features a premium sheet-metal integrated enclosed protective housing. The core purpose of this design is to completely isolate the internal mechanical movement zone, effectively protecting operators from pinch points, crushing risks, and other occupational hazards. Simultaneously, it provides high-standard dustproofing, preventing foreign debris from dropping into precision internal mechanisms and significantly enhancing the intrinsic safety of your production floor.

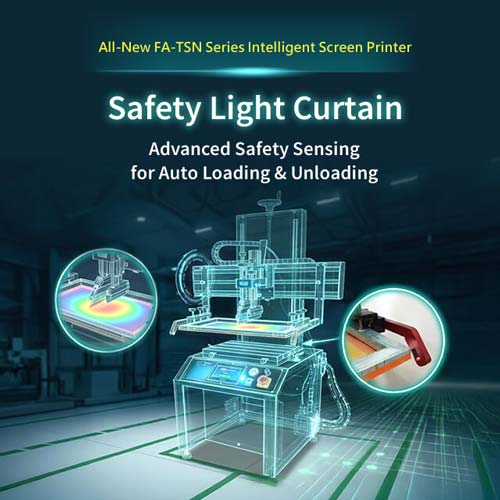

• Active Safety Light Curtain (Active Protection): As shown in our new visual banner, this series of standard flatbed screen printers features an integrated safety light curtain system as a standard configuration. Whether handling manual material feeding or day-to-day operations, if an operator or a foreign object breaches the designated safety perimeter, the system executes a millisecond-level emergency halt to deliver top-tier physical protection for your personnel. (Note: Safety light curtains are optional add-ons for custom machinery and fully automated inline systems.)

Digital Core Evolution: Completely Eliminating Traditional Hydraulic Shock Absorbers

Traditional flatbed screen printing machines often rely on "hydraulic shock cylinders" to suppress vertical vibration during frame lift. This design requires technicians to use manual hand tools for height micro-adjustments, and over time, these cylinders are prone to oil leaks and seal wear—leading to frequent downtime for parts replacement. FINE CAUSE addresses this with a disruptive digital alternative for the FA-TSN Series:

• Digital Screen Lift Settings: Screen peel-off and lift heights no longer rely on guesswork or trial and error. Through the new-generation HMI (Human-Machine Interface) touch console, operators can simply type in digital parameters to effortlessly set the exact screen lift stopping position. Job changeovers are completed in a matter of seconds.

• Digitally Controlled Pneumatic Brake System: Vertical screen lift and braking are now entirely managed by a microcomputer-controlled pneumatic brake system, rendering old-fashioned hydraulic cylinders obsolete.

• Three Major Maintenance-Free Advantages: Quiet, Fast, and Wear-Free. The pure pneumatic mechanism operates with whisper-quiet acoustics while locking target positions with absolute precision. Crucially, there are no wearable components requiring routine servicing, saving your enterprise substantial long-term overhead in maintenance labor and spare parts costs!

Preserving Top-Tier Heritage: Inheriting the Precision DNA of FINE CAUSE

Alongside its cutting-edge digital and safety upgrades, the FA-TSN Series fully retains and refines the core engineering hallmarks that FINE CAUSE is renowned for globally:

• Servo Motor Driven Squeegee Controls: Horizontal squeegee and flood bar strokes are driven entirely by a high-precision servo motor setup paired with high-rigidity linear guide rails and premium ball screws. This ensures that the printing stroke path accuracy is tightly maintained within ±0.01mm.

• Patented Magnetic Squeegee Holder (Patent No. M390871): Our signature quick-release magnetic squeegee assembly allows for exceptionally rapid tool-less tear-downs, effortless cleanup, and precise re-installation while minimizing ink buildup.

• Independent Squeegee Pressure Calibration: Outfitted with highly sensitive analog pressure gauges, squeegee pressure can be finely calibrated independently. This guarantees an absolutely uniform ink deposit thickness across large-format print areas.

• App-Driven Industrial IoT Smart Management: Features a built-in intelligent analytics and charting system that visualizes up to 30 days of production throughput, machinery uptime, and cycle times. It provides the actionable, data-backed insights required for modern smart factory oversight.

Technical Deep Dive: Why Choose a Screen Printer with Servo-Driven Squeegee Control?

There are three primary driving mechanisms used for squeegee actuation across the marketplace. This comparative breakdown highlights why the FINE CAUSE FA-TSN servo-driven squeegee system offers an absolute competitive advantage:

1. Traditional Pneumatic Cylinder Screen Printing Equipment:

   • The Drawback: Pneumatic cylinders suffer from physical deceleration and a distinct "juddering/hesitation point" when stopping or reversing at stroke thresholds. This variance easily triggers ink bleeding or heavy edges. Furthermore, plant air supply pressure naturally fluctuates, causing unpredictable squeegee speeds that result in inconsistent line weights or uneven ink deposits.

   • The Advantage: A lower upfront capital cost, making it suitable primarily for legacy, low-tier printing applications.

2. AC Induction Motor Driven Screen Printing Equipment:

   • The Drawback: While it bypasses shop air pressure fluctuations, the mechanical resistance encountered during printing still disrupts stroke velocity. When printing high-viscosity formulations or applying heavy squeegee down-pressure, the AC motor slows down under load. Additionally, its speed adjustment range is highly narrow, and neither speed nor stroke distance can be digitally managed or precision-calibrated, making it inadequate for next-generation electronics manufacturing.

3. FINE CAUSE Servo-Driven Precision Screen Printer (FA-TSN Series):

   • The Definitive Solution: Squeegee printing speeds are completely uncoupled from pneumatic fluctuations or ink resistance. The speed range is exceptionally broad (fully adjustable via digital input from 10mm/s to 1000mm/s), and stroke distance accuracy is locked within ±0.01mm. This absolute level of computerized control makes it the ultimate choice for highly demanding, precision industrial printing applications such as silver paste trace deposition, solder paste printing, optical glass panels, and uniform adhesive coatings.

Choose the FINE CAUSE FA-TSN Series to Bring Peerless Precision and Operator Safety to Your Line

This is not a minor aesthetic refresh—it is a digital and safety revolution for flatbed screen printing machinery. FINE CAUSE has seamlessly engineered Euro-American compliant protective enclosures, standard safety light curtains, and maintenance-free digital pneumatic braking into one unified system. We welcome you to schedule an appointment to bring your substrates and products to our facility for an in-house test printing session and comprehensive consulting. Let our industry-leading intelligent technology build a flawless, high-yield foundation for your manufacturing quality!
