Electric Screen Printing Machines
Small round screen printing machine
- Features
- Maximum printing area of the small curved screen printing machine: 120×500mm.
Description

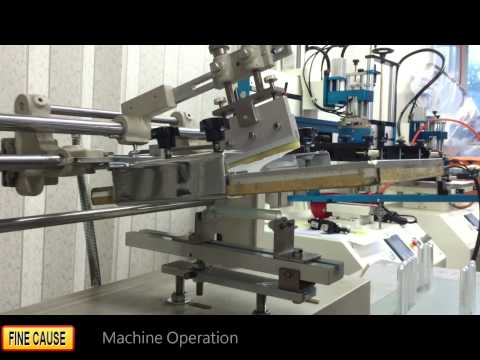

This small curved screen printing machine is easy to operate and maintain. Applications include: curved surfaces, cylinders, pipes, shampoo bottles, cosmetic bottles, etc. The screen lifting is driven by a motor and cam, eliminating the need for a compressor.
Round screen printing machin(small sized)-A-100C
■ Feature :
-
This small-sized electronic curved screen printer, easy for operation and maintenance.
-
Screen lifting is powered by motor and cam operation, no compressor required.
-
This round screen printer suitable for printing round shape plastic or pen, small-sized round tube products.
-
The moving range of screen is 100mm.
-
It is designed to provide single color printing without anchor point, encoder gear is not configurable for this model.
-
The screen is not vertically lifted or lowered by pneumatic gear.
-
Both 110V and 220V are available.
■ Application :
Printing for Curved Surface, Cylinder Objects, Tubes, Shampoo Bottles, Cosmetic Bottles.
Specifications
| Model/Spec. | FA-100C |
|---|---|
| Color | 1 |
| Air Pressure(kg/cm2 psi) | 4~6 |
| Power Consumption(A) | 3 |
| Voltage (V) | 110 V & 220 V |
| Max. Print Area(mm) | 30Ø |
| Scraping Distance(mm) | 100 |
| Platform Height(mm) | Lift-Arm Type |
| Steel Plate (mm) | 120X50 |
| Capacity/hr | 600~1200 Pcs |
| Dimension (mm) | L:60 W:40 H:170 |
| Max. Screen Plate Size(cm) | 30*50 |
| Net W. | 90 Kg |
