Planetary Centrifugal Mixers/Centrifugal Mixer

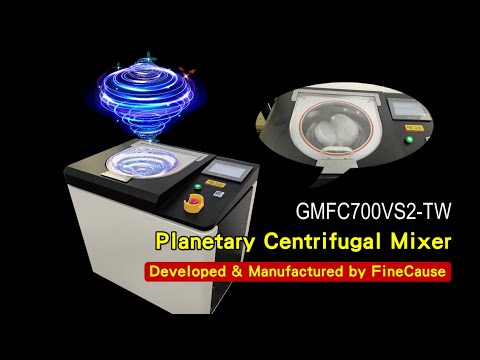

Planetary Centrifugal Mixers/Centrifugal Mixer-GMFC700VS2-TW

Developed & Manufactured by FineCause

Pure Centrifugal Mixing Operation, Designed for Multi-component and High-Viscosity Materials

The GMFC700VS2-TW adopts a dual-axis centrifugal motion mechanism (revolution + rotation). It achieves high-efficiency mixing, uniform dispersion, and natural degassing effects through strong centrifugal force, without relying on vacuum.

It is suitable for processing various materials such as pastes, powder-liquid mixing, nano dispersion, and silver paste.


Centrifugal Mixing Principles (Revolution + Rotation)

• Revolution: Creates powerful radial compression force When the container revolves at high speed around the central axis, strong centrifugal force is generated, pushing the material outward and compressing it layer by layer. Components with higher density concentrate toward the outside (container bottom), while lower-density components remain near the surface. This forms natural stratification and an outward squeezing effect, which helps to exclude bubbles in the mixture.

• Rotation: 45° angled vortex flow, enhances uniformity The simultaneous 45-degree rotation generates a strong vortex within the container. This causes high-viscosity and multi-component materials to flow in intersecting paths, achieving:

  • Faster mixing

  • More uniform dispersion

  • Consistent particle distribution

The revolution/rotation ratio can be adjusted as needed to ensure optimal mixing results for different materials.

(For stronger degassing, the vacuum version is available) GMFC700VS-TW Planetary Centrifugal Mixer

The GMFC700VS2-TW Centrifugal Mixer is the pure centrifugal version. If dealing with extremely high-viscosity materials or requiring a higher standard for "completely bubble-free" results, the GMFC700VS-TW Centrifugal Degassing Mixer, which is equipped with a vacuum pump, can be selected.

The centrifugal mixer also has a vacuum degassing model, which is faster and delivers better results.



GMFC700VS2-TW Centrifugal Mixer Key Features

Dual-Container Mixing Design (700 mL × 2)

• Maximum filling volume is 500 mL per container, with weight up to 700 g.

• Supports simultaneous processing of two containers.

Two Mixing Modes for Greater Application Flexibility

• Single-Stage Mode (Simple Mixing) Allows direct setting of: Revolution Speed, Rotation Ratio, and Mixing Time. Suitable for general homogeneous mixing and dispersion applications. Rotation offers two modes: Standard Mode (forward) and Boost Mode (reverse).

• Multi-Stage Mode (Advanced 10-Stage Parameter Settings) Each stage can be independently set for: Revolution Speed / Rotation Ratio / Time. Typical usage procedure:

  • 1. Pre-mixing Stage: Low-speed gentle mixing for initial blending of powder-liquid or multi-component materials.

  • 2. Intensive Mixing: Mid-stage high speed to fully homogenize the material.

  • 3. Optimization Stage: Lowering revolution/rotation speeds to stabilize the mixed material. This mode can handle the needs of high-viscosity, composite materials, and precise processes.

Dual High-Speed Brushless Motors (Revolution + Rotation Split-Axis Drive)

• High torque, low vibration.

• Revolution and rotation speeds are continuously variable.

• Maintains powerful driving capability even for high-viscosity materials.

• Multiple material parameters can be freely adjusted, increasing process flexibility.

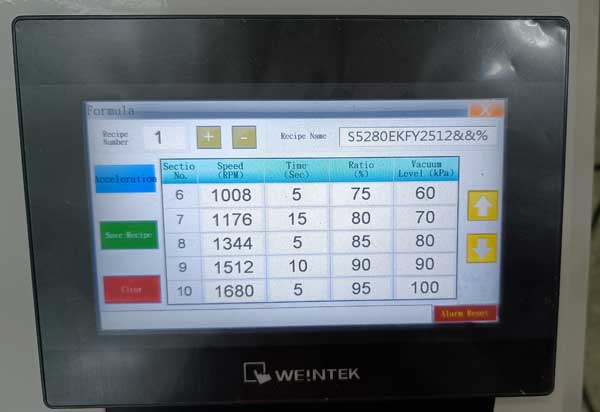

30 Recipe Memory Function

• Users can customize recipe names.

• Maximum 10 stages of parameters per recipe.

• One-button switching between standard processes for different materials.

• Suitable for mass production and multi-operator factory environments.

Intuitive Touch Control Interface

• High-definition touch screen, easy to learn and use.

• Supports five languages: Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

• Clearly displays operating status and parameter settings.

Multiple Safety Protection Design

• Includes: Door-cover detection, vibration abnormality monitoring, overload protection, emergency stop button, and abnormality alarms.

• Ensures safety and stability are maintained even during high-speed operation.

Applications of Centrifugal Mixer

The GMFC700VS-TW2 Centrifugal Mixer is widely applied in:

• Electronics Industry: Conductive adhesives, electronic pastes, dielectric pastes, anti-counterfeit inks, solar pastes.

• Nanomaterials: Carbon nanotubes, graphene, nanocomposites, nano metal powders.

• Cosmetics Manufacturing: Foundation, blush, lipstick, lip gloss, eyebrow pencils, eyeshadows, sunscreen, BB creams, nail polish,  eyelash adhesives, etc..

• New Energy Batteries: Lithium-ion, sodium-ion, fuel cells, solid-state batteries.

• Food & Pharmaceutical: Syrups, chocolate, medical ointments, hyaluronic acid fillers, dental materials, orthopedic gels, etc..

Materials Suitable for Centrifugal Mixer

Compatible with a wide range of high-viscosity and precision-mixing materials: Epoxy resin, polyurethane, silicone, electronic inks, conductive adhesives, colorants, pigments, carbon nanotubes, nano powders, composite materials, and more.

GMFC700VS2-TW Centrifugal Mixer Key Advantages

• In-house R&D and manufacturing by FineCause, ensuring precise and stable construction.

• Dual brushless motor centrifugal mixing technology.

• Multi-stage recipe memory control.

Materials Suitable for Planetary Centrifugal Mixer

Compatible with a wide range of high-viscosity and precision-mixing materials:

Epoxy resin, polyurethane, silicone, electronic inks, conductive adhesives, colorants, pigments, carbon nanotubes, nano powders, composite materials, and more.

Key Advantages of the GMFC700VS-TW Vacuum Degassing Mixer

In-house R&D and manufacturing by FineCause, ensuring precise and stable construction

Dual brushless motor centrifugal mixing technology

Vacuum-assisted degassing system

Multi-stage recipe memory control

High-level safety protection with low maintenance cost


Non-Vacuum vs. Vacuum Centrifugal Mixer

Specifications
