1-Color Pad Printing Machine

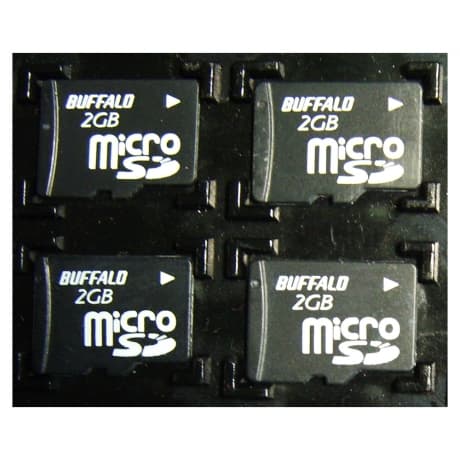

Custom pad printer-MICRO SD card dedicated pad printing machine
FC-680
- Features
- The pad printing machine utilizes a track servo motor drive, ensuring rapid and sensitive response.
Description
pad printing machine set up the customize feeding fixture which number of the row, spacing and printing quantity and discharge system will eject the printing product automatic. Able to start printing for 20g of the ink. (Reduce ink cost).

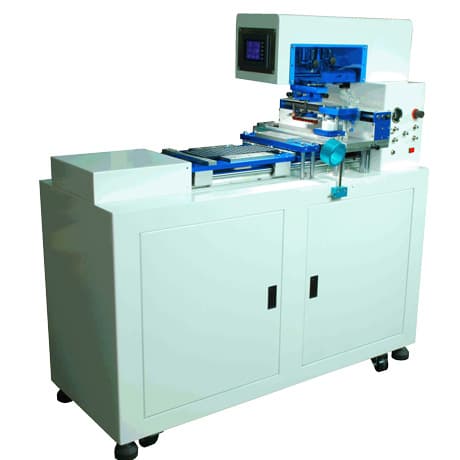

Custom pad printer-MICRO SD card dedicated pad printing machine-FC-680
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-
Able to start printing for 20g of the ink. (Reduce ink cost)
-
Sealed ink-cup design/Stable printing quality
-
Customize Rail feeding system operate by servo motor . Rapid speed and sensitive reaction
-
pad printing machine set up the customize feeding fixture which number of the row, spacing and printing quantity and discharge system will eject the printing product automatic.
■ Capacity：
-
Each piece printed once：120 pcs/Min
-
Each piece printed twice：60 pcs/Min
Specifications
| Model | FC-680 |
|---|---|
| Color | 1 |
| Cycles/hr | 3600~7200 Pcs |
| Machine Size (cm) | L:140 W:40 H:130 |
| Weight | 250KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 20 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | 80*350 *10 |
