Single Color Pad Printer
Large-Sized Single Color Pad Printing Machine
- Features
- The largest pad printing machine in the standard machine
- Max. Print Area (mm):Ø110(mm)
Description
The height of rubber can be installed achieve 270mm.Sheet Metal & Powder Coating Machine Body and strong Structure. (Patent No.: M456283).

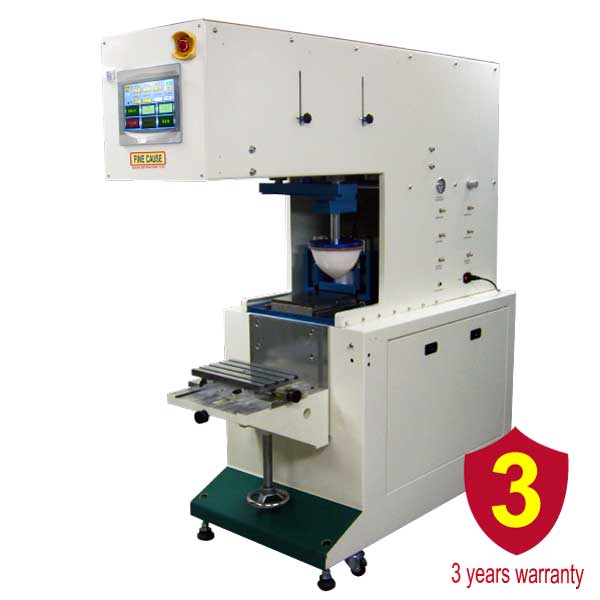

FC-311ANC -Large-Sized Single Color Pad Printing Machine
The biggest size of the standard machine, suitable for print large size of the product or cladding product. The height of rubber can be installed achieve 270mm.
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Pad Printer Feature :
-
Max. Steel Plate Size: 170*400 mm
-

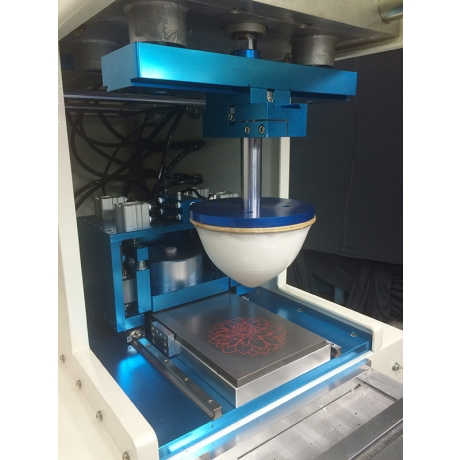

Max. Pad Size: φ260mm
-

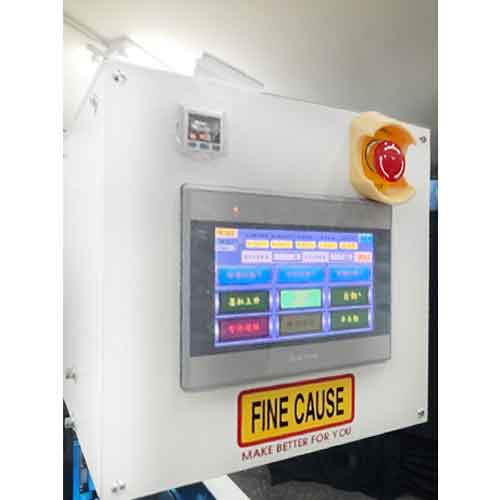

The pad printer is fully upgraded with a 10.1-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
Programmable Logical Controller – Easy to add functions.
-
Malfunction Detector – Screen Display.
-
Embedded lighting equipment.
■ Robust & Safe Design:
-
Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
-
The pad printer uses Sheet Metal & Powder Coating Machine Body and strong Structure(Patent No.: M456283).
-
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.
■ Suitable for：
large size printing such as helmets, large
Specifications
| Model/Spec. | FC-311ANC |
|---|---|
| Color | 1 |
| Steel Plate (mm) | L:400 W:170 H:10 |
| Pressure (kg/cm2 psi) | 4~6 |
| Power Consumtion (A) | 5 |
| Voltage (V) | 110-220V |
| Platform Size (mm) | 190*320 |
| Max. Print Area (mm) | Ø110 |
| Inkcup Size (mm) | Ø130 |
| Max. Height ofPrinted Object (mm) | 200 |

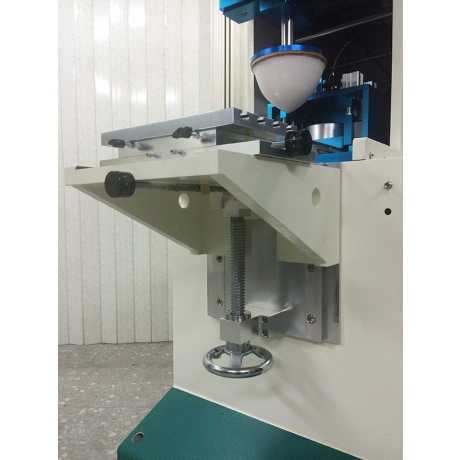

| Platform Moving Distance (mm) | 300 |
| Height - Pad Stand toSteel Plate (mm) | 300 |
| Capacity/Min | 6-15 Pcs(Depending on printing sizes of the design or printing conditions) |
| Dimension (cm) | L:160 W:65 H:175 |
| Net W. | 550 KG |
