Fully Automatic Screen Printer(Printing for Magnetic Stripe Coating)

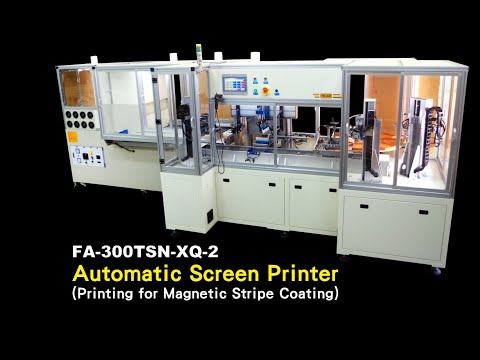

FA-300TSN-XQ-2 Fully Automatic Screen Printer(Printing for Magnetic Stripe Coating)



• The fully automatic screen printer is equipped with a 10" HMI.

  • The large color panel is easy to operate. Language can be English, Indonesian, Vietnamese, Thai, Chinese or customized.

  • Enter the formula parameter page to store 100 sets of formula.

• Feeding mechanism by carousel.


  • 8 stations is on indexing table. Up to 200 pcs of object can be placed at a time.

  • The same batch of the objects can be set to any quantity. After feeding, it can be replenished at any time.

• Flipping mechanism

  • Set the memory. It will turn the object over automatically when printing on the reverse side for the second time.

• Gripper Arm

  • Gripper arm grasps the objects automatically.

• Object breaking detection mechanism

  • Grating detects the broken NG products. It will identify and classify automatically.

• Conveying mechanism

  • The conveying mechanism conveys smoothly and quickly.

• Screen printing mechanism

  • Fully automatic screen printer adopts pneumatic squeegee stand that can up and down straightly. The squeegee pressure can be adjusted individually.

  • Fully automatic screen printer adopts magnetic squeegee clip (patent number M390871).

  • Both X and Z axis adopts servo motor with linear guideway and ball screw, which is easier to adjust the the distance from printed object to screen stencil during printing.

• Residual ink removing mechanism


  • Scrape off excess coating for easy maintenance of print quality.

• Discharging mechanism

  • Discharging arm takes the objects out automatically.

• Conveyor/oven mechanism

  • After discharging, the objects are transferred into the oven to speed up drying. Before entering the oven, the printed objects will be positioned. After baking, the objects will be cooled by fan automatically.

Specifications
