Single-Color Steel Plate Pad Printer with Automatic Pad Cleaning Mechanism

Single-Color Steel Plate Pad Printer with Automatic Pad Cleaning Mechanism-FC-191ENC



FC-191ENC Running Steel Plate Single-Color Ink Cup Pad Printer :

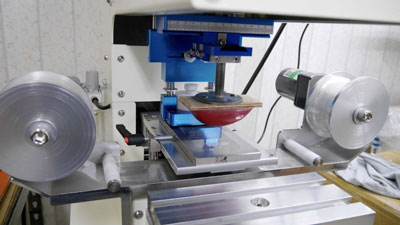

Automatic Running Steel Plate Structure & Automatic pad cleaning system

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Feature :

• Additional Automatic-Residue-Cleaning Device

  • Also can be applied onto textured-surface material or rough-surface material.

  • To keep the printing pad from particles or dusts during printing process, and maintain the printing quality.

  • It is a replacement for manually cleaning the printing pad. Instead, we use mechanical manner which is more convenient.

  • Depends on different materials for different printing count; able to set printing count and automatic cleaning count. It is the best of both worlds with the decision.

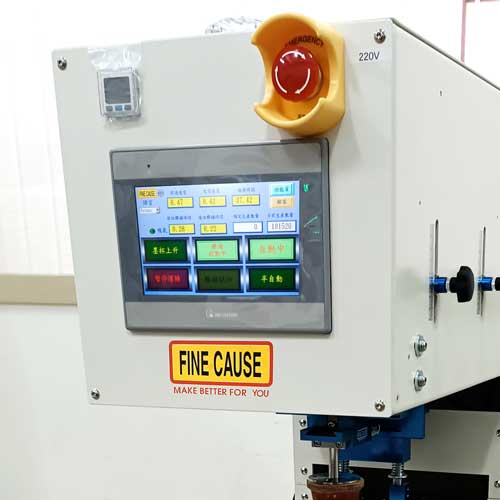

• The pad printer is fully upgraded with a 7-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.

  • A programmable logic controller provides easy settings of functions and operations.

  • Errors and notifications displayed on the screen with scrolling text.

  • Electrical air pressure sensing.

  • Smart charts recording.

  • The pad printer can save the formulas.

• The pad printer can display built-in bar charts that indicate the productivity, operation time, speed of operation, etc.

  • Connect to Fine Cause Smart Production Data APP that can accesses to your machine production rate anytime anywhere.

• Adjustable doctoring device (patent no. M311585) - makes easier adjustment of the doctoring pressure.

• Built-in flush mounted light.

• Adjustable pressing power of the ink cup.

 ■ Suitable For :

special material printing, toys, stationery, watches, accessories, electronic products, switches, buttons, lighter surface and so on.
Plastic printing, metal finished products, semi-finished products, ceramics glass product or uneven surface printing

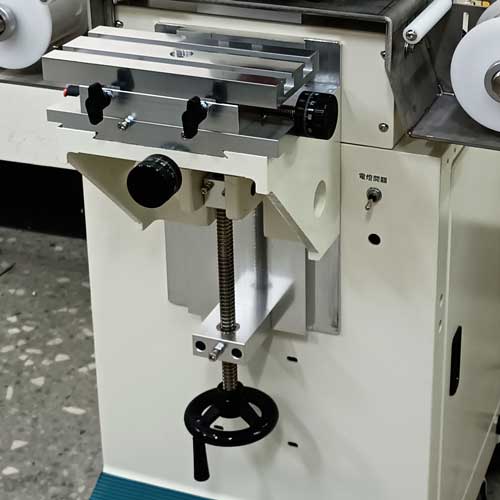

Additional precision indexing plate makes it easy to access materials
It is also able to expand the automation peripherals to increase production.

By integrating two national-level invention patents, our pad printers are no longer passive executors.

They actively perform self-computation and maintain absolute positioning, ensuring consistent accuracy regardless of speed, air pressure, or environment.

This is a pad printer that “calculates how to stop” and “ensures zero deviation” on its own.

..Learn more about the complete introduction to Pad Printer with AI: Patented Self-Computing Braking & Absolute Positioning Technology...

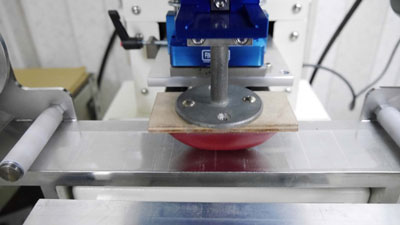

▼Automatic pad cleaning system

Specifications
