Bag Printing Machine with Automatic Rotary Mechanism

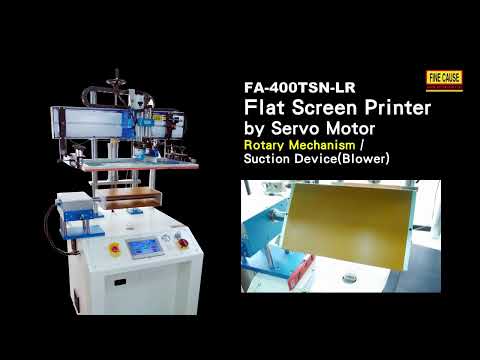

FA-400TSN-LR-Bag Printing Machine with Automatic Rotary Mechanism



■ Feature of screen printing machine:

• ▼The screen printer is equipped with a rotary mechanism that the special printing jig for paper bags will automatically rotate and position the front and back sides printing.

• • To rotate or not to rotate can be chosen.  (can do printing on one side or both sides)

  • The normal flat jig can be replaced. One printer can be used for 2 purposes.

• ▼Equipped with a suction device (blower), the flat object can be fixed.

• Adopt PLC that the functions is easy to add or modify.

  • The screen displays the servo running position. Multiple sets of formula can be stored and the parameters can be set.

• Magnetic squeegee clip (Patent No. M390871)

• Ink scraping adopts servo motor with linear guideway and ball screw rods.

  • The squeegee position can be slided easily and is simple to adjust the position and assemble and disassemble.

• Pneumatic squeegee set lifts linearly.

  • There will no issue of squeegee height deviation, which will occur in traditional manual lifting.

  • It is more convenient to clean the screen stencil.

  • There will be no issue that the ink will flow out of the screen stencil, which will occur in  manual squeegee lifting.

• The upper and lower sleeves are extruded that the weight is reduced and the operation is fast, stable, and quiet.

• Printing speed is adjustable. The printing process is fast and accurate.

• 7" color touch screen 65536 colors TFT.

  • With I/O (input/output), each sensor location is shown in whole area of the machine.

  • With abnormal alarm display, it is convenient for production line personnel to quickly eliminate abnormalities.

  • With electronic air pressure sensing, the device will alarm automatically for insufficient air pressure.

  • The usage count of squeegee or screen stencil can be set. When the set value is reached, the device will stop and notice automatically.

  • The HMI built-in 5 languages, Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

• The screen printer has the production history function: built-in smart bar chart that the productivity, operation time, production speed, etc in the past 30 days can be shown.

• The screen printer is combined with smart factory-Industrial Internet of Things (I.O.T.). Connect with FineCause smart factory APP, no matter where you are, you can view the produtivity report anytime and anywhere.

Specifications
