Automation Equipment
Automatic spray coating machine
FJP-001
- Features
- The spray coating machine adopts a high-precision servo control system.
- It has a built-in electrostatic dust removal function to ensure spray painting quality.
Description
The spray coating machine is equipped with an electrostatic eliminator. Two sets of nozzles can spray simultaneously, and the angle is adjustable. It is controlled by a servo motor sliding sleeve structure, and the travel distance can be set.
Automatic spray coating machine/Automatic spray painting machineFJP-001
-
Equip electrostatic static eliminator
-
The Nozzles has spurting at the same time (two set ) with adjustable angle structure.
-
The net platform could be spun the direction on clockwise or counterclockwise.
-
Control by servo motor sliding sleeve structure, available for set up the moving distance.
Sliding sleeve moving distance :
-
Left / Right :800 mm
-
Back / Forward :800 mm
-
The fastest moving Speed : 500 mm/sec (0.5 m/sec)
-
The minimum moving distance : 1mm

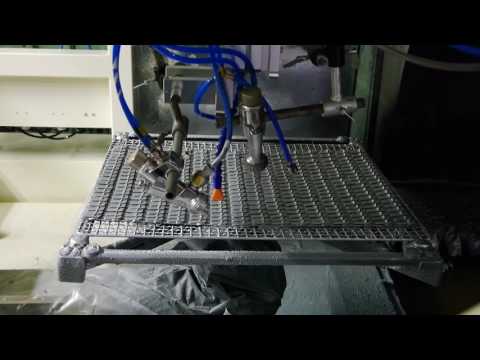

▼ It could spun the direction on clockwise or counterclockwise.
