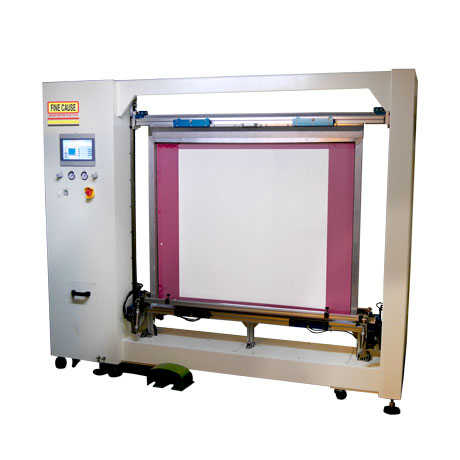

Automatic Screen Emulsion Coating Machine- B001FACM-A1

• Generally, the manual coating method has a high risk of doctoring angle deviation.

• The machine is used for photographic emulsion coating on screen with high accuracy.

• The equipped sliding guideways and servo motors provide even and stable photographic emulsion coating on the screen because of precise coating pressure and speed control.

• The digital human-computer interface has been standardized that the device digitalizes both operation information and production records.

Features

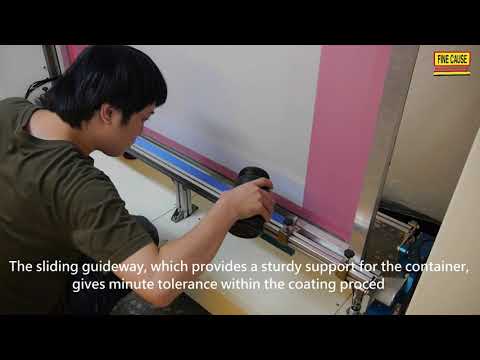

• The sliding guideway, which provides a sturdy support for the container, gives minute tolerance within the coating procedure.

• Air pressure control screen frame hanger, no need to change device for various sizes – easy input/output operation

• Default coating time: 1-15 times, independent back and forth digital control

• The photographic emulsion container is used pressure control – freely controls coating pressure

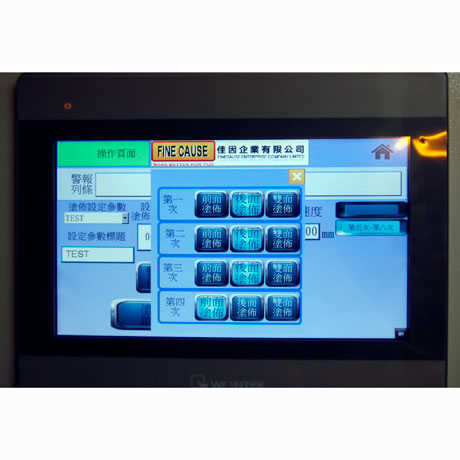

• Multicolor touch screen built in 2 languages: Traditional Chinese and English

• 7 inches human-computer interface (65536 colors TFT touch panel)

• Input / output all page display

• Error alert displayed by scrolling text – easy to be found and resolved

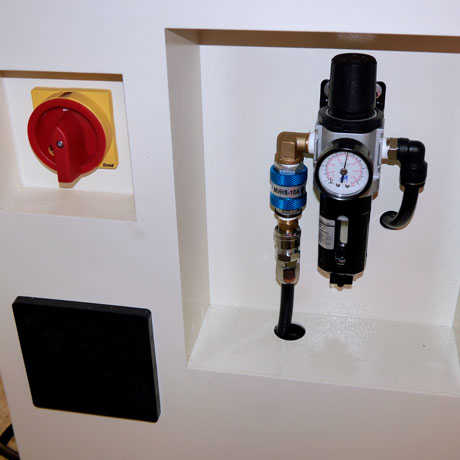

• Electronic air pressure sensor – automatic low-pressure alert

• Settings of coating time – auto-stop per schedule, scrolling text display

• Equipped a programmable logic controller – easy to set up functions and operations

• Adjustable pressure photographic emulsion container with an elegant pressure gauge

• Digital control back and forth coating time per selected film thickness

• Double side coating can be set as simultaneous operation
