Cliche plate

Pad Printing Steel Plates - Economic Style

FC-Steel-02
Features
Economical Pad Printing Steel Plate- it has uniform hardness and economical price, which is suitable for pad printing small production and sample making. The fabrication is accurate and fast.
icon-plus Add Inquiry (0)
Added to Inquiry list.

Pad Printing Steel Plates - Economic Style

  • Affordable price, less burden
  • Suitable for small-scale production and proof testing
  • No need to modify the machine
  • Make fast

■ FineCause Pad Printing Cliche Plate
  • Fine Cause pad printing cliche plate is made in Taiwan
  • Fine Cause is a professional pad printing cliche plates manufacturer.
  • We have pad printing thick cliche plate (material SKD11), economical pad printing steel plate for pad printing machine, thin pad printing cliche plate, laser engraving thick and thin cliche plates, etc., as well as professional carborundum grinding, polishing treatment, and general grinding. We use professional 2.5D measuring instruments to measure the pattern on the cliché and film.
Pad Printing Steel Plates - Economic Style Pad Printing Steel Plates - Economic Style Pad Printing Steel Plates - Economic Style
  • ▲2.5D measuring instruments to measure the pattern on the cliché and film.
Pad Printing Steel Plates - Economic Style Pad Printing Steel Plates - Economic Style Pad Printing Steel Plates - Economic Style

Pad printing thick cliche plate (material SKD11)
used for pad printing with long service life, which usually provides hundreds of thousands of printing cycles. The thick cliché ensures excellent scraping effect and perfect image clarity.

Economical Pad Printing Steel Plate
it has uniform hardness and economical price, which is suitable for pad printing small production and sample making. The fabrication is accurate and fast.

Thin Pad Printing Cliche Plate
  • With a grey protective peel sheet in order to prevent scratching.
  • The price is cheaper, which is very suitable for small production and sample making. It can be used for pad printing cliché with laser engraving. The fabrication is accurate and fast.

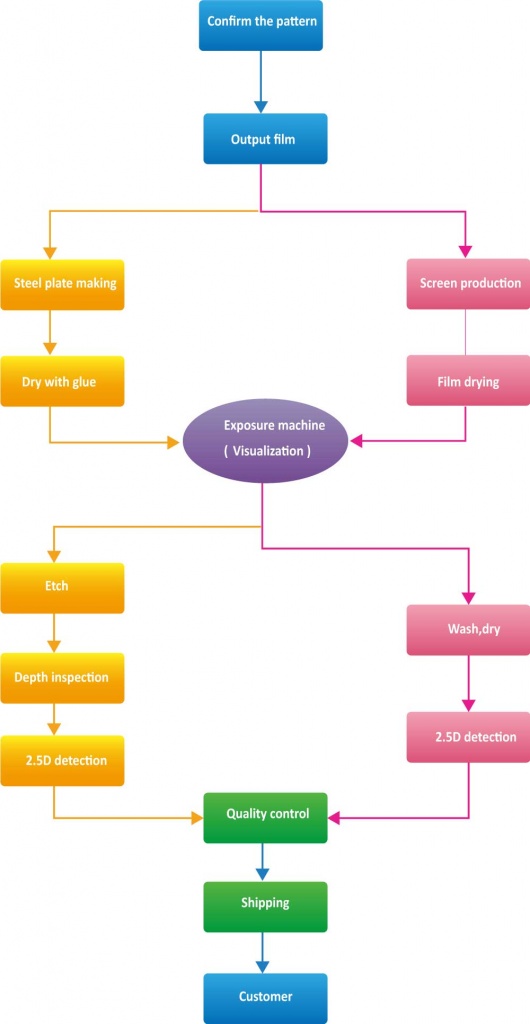

Procedure of Making Cliché Plate and screen stencil
Pad Printing Steel Plates - Economic Style




  • Specifications
    Product name Thick Steel Plate size Economic Steel Plate size Thin Plate
    Open-tray pad printer 80*80、80*150、100*100、110*140、110*125、100*150、100*250、200*200 80*80、100*100 NA
    Ø60 Ink Cup 90*160、90*180、90*200、100*200、120*180、80*350、100*350 90*160、90*180、90*200、100*200 90*200、100*200
    Ø90 Ink Cup 120*215、120*220、120*240、100*600、100*700、120*700、120*750、120*780、120*800、170*820 120*240 120*240
    Ø130 Ink Cup 170*370、170*400
