1-Color Long Image Pad Printing Machine

FC-261CEC-450-1-Color Long Image Pad Printing Machine



Horizontal Scraping Pad Printer with Pad Cleaning Function

(Extended Ink Scraping Stroke)

• Pad printer with horizontal scraping mechanism

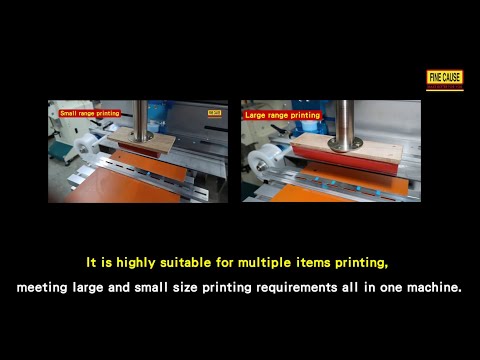

  • The ink scraping range is freely adjustable, allowing for the use of different-sized cliches. Big cliché is applied to large pattern while small cliché is applied to little pattern. The plate costs can be saved and the productivity can be increased.

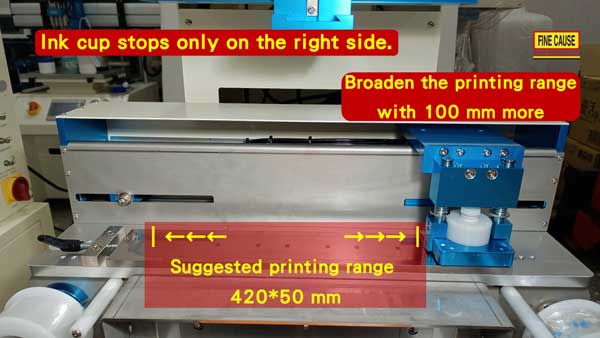

  • The HMI allows customers to freely set the ink cup stop position as single-side or both-side. Activating the ink cup stop on the right side function can widen the printing range.

• The ink cup of the pad printer moves left and right to increase the printing size.

  • The left-right ink scraping stroke is 450mm that the printing range is wider. The stroke is adjustable that the ink scraping range can be narrow for small pattern, speeding up the printing process.

• The pad printing machine is equipped with automatic pad cleaning (ink residue removal) function.

  • The maximum available tape width is 5cm.

  • Can be set to remove residue ink (clean pad) after 【a specific number of prints】 and the cleaning times can be set as well.

  • With automatic pad cleaning function, even the invisible dust can be eliminated to ensure a perfect print everytime.

• With pressure-regulating ink scraping system (patent no. M311585), the scraping pressure of the ink cup can be adjusted easily.

• The pad printer is made by sheet metal + powder coating and the main body is formed integrally (patent number M453283).

• Bushing component sets make the machine run more smoothly and stably and improve the printing quality greatly.

• 7.0" color TFT touch screen:

  • With I/O (input/output), each sensor location is shown in whole area of the machine.

  • With abnormal alarm display, it is convenient for production line personnel to eliminate abnormalities quickly.

  • With electronic air pressure sensing, the device will notice automatically for insufficient air pressure.

  • The printing pad usage count and cliché usage count can be set. When the set value is reached, the device will stop and notice automatically.

• Utilizing programmable logic controller (PLC) for easy addition or modification of functions:

  • Pneumatic cylinder running speed is displayed on the screen.

  • Multiple groups of recipes can be stored and parameters can be set.

• Built-in 5 languages, traditional Chinese, English, Indonesian, Vietnamese, and Thai.

• Production history function: built-in smart bar chart that the productivity, operation time, production speed, etc in the past 30 days can be shown.

• With smart factory Industrial Internet of Things (I.O.T.), wherever you are, you can view the productivity report by downloading the FineCause APP.

• Even if the printing pad is not removed at the end of printing, the printing pad will not fall due to air pressure released, which can prevent the printing pad from damage.
